The motorcycle rectifier is a key component of the electrical system, whose main function is to convert the alternating current (CA) generated by the engine in direct current (CC) to load the battery and feed the electrical devices of the motorcycle. The rectifier is usually integrated with the voltage regulator (stabilizer), and both are collectively called rectifier-regulator.
? The main functions of the motorcycle rectifier are the following:
✅ 1. rectify the alternating current to continuous current
The electricity generated by the magnetic motor (generator) of the motorcycle is alternating current (CA), but the motorcycle battery and most electrical appliances (such as LED lights, instruments, speakers, ignition systems, etc.) can only use continuous current (CC). The rectifier rectifies the alternating current to direct current.
✅ 2. Stabilize tension.
Motor speed changes cause changes in generation voltage, which, if not controlled, can damage battery or electrical devices. The tension regulation function of the rectifier stabilizes the output voltage and prevents burns due to excess voltage.
✅ 3. battery protection
When the voltage is too high or too low, the rectifier automatically adjusts to avoid overload or excessive battery discharge, which prolongs its useful life.
✅ 4. Improvement of the stability of operation of electrical appliances
It provides a stable CC power supply, which guarantees a constant luminosity of the vehicle lights, precise readings of the instruments and a fluid electrical start, among other things, to improve the general driving experience.
When it comes to motorcycle maintenance, changing the regulator is a key task to ensure an efficient electrical system. In this step by step, we will explain clearly and detailed how to change the regulator of your motorcycle, allowing you to maintain optimal performance on the road.
Step 1: Preparation and Safety
Before starting, make sure you have the right tools and disconnect the battery to guarantee your safety. Check your motorcycle service manual to locate the regulator and understand the specific procedures for your model.
Step 2: Disassembly of the old regulator
Carefully, remove any coverage or panel that protects the old regulator. Disconnect the electrical cables that are connected to the regulator. It is important to label or take note of the position and colors of the cables to facilitate the installation of the new regulator.

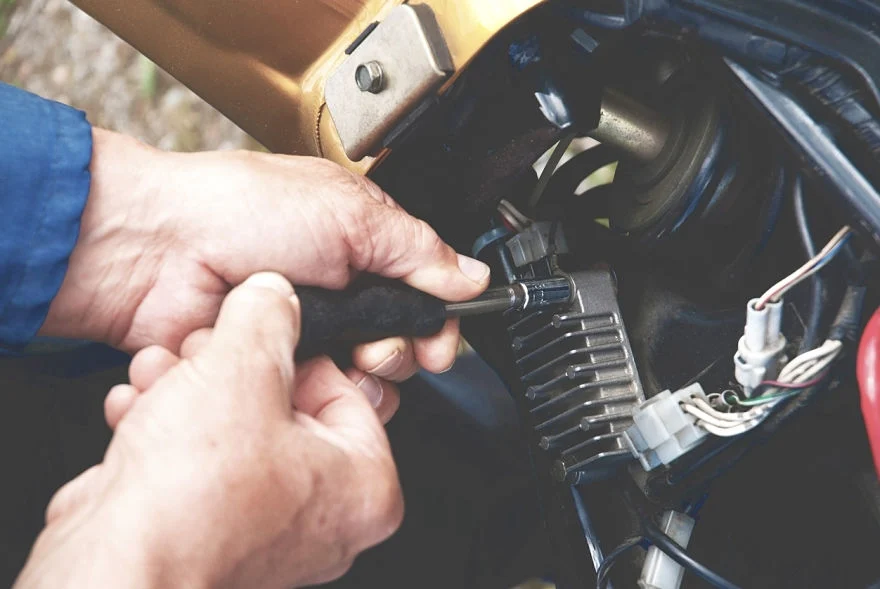

Step 3: Old regulator extraction
Using the appropriate tools, disassembled or unscrew the old regulator. Pay attention to any specific indication of the manufacturer on the extraction method. Carefully remove the old regulator from your place.
Step 4: Installation of the new regulator
Place the new regulator in the correct position and adjust it according to the manufacturer's instructions. Be sure to tighten the screws or fixing bolts evenly to avoid damage. Connect the electrical cables to the new regulator following the labels or notes you have done before.
Step 5: Verification and Tests
Reconnect the battery and turn on the motorcycle. Verify the correct functioning of the new regulator by observing the stability of the electrical system. Check the lights, indicators and any other electrical component to ensure that everything is in order.
Step 6: Load test
If possible, perform a load test to confirm that the regulator is distributing the load properly. Check the service manual for specific details about this test.
