Dive into Motorcycle Starting: Discovering the Motor, the Relay and their Connection to the Regulator

23/12/2023
The starting system of a motorcycle mainly consists of a starter motor, a starter relay, a battery, an ignition switch and a regulator/rectifier.
✅Starter motor: converts electrical energy from the battery into mechanical energy, which turns the engine crankshaft and allows the engine to start.
✅Starter relay: acts as a high-current switch, protecting the ignition switch from high-current impacts and controlling the connection and disconnection of the starter motor.
✅Regulator/rectifier: rectifies and stabilises the voltage.
Starter motor: Provides mechanical power to drive the engine.
Starter relay: Controls the flow of high-voltage current and protects the circuit.
Regulator: Ensures normal battery charging and maintains power supply to the starting system.
The three components work together: Failure of any one component will result in starting failure, requiring systematic troubleshooting.
1. What are Starter Motor and Starter Relay? What components are they made of?
Starting motor:The starter motor is an essential component of the motorcycle's electrical system, responsible for starting the engine. It is made up of the body of the electric motor and a starter gear connected to the motor.
Motor de Arranque
Start Relay:The starter relay is a key electromagnetic switch in the electrical system. Includes an electromagnetic coil, contacts and a spring. One end connects to the battery and the other to the starter motor. Its main function is to control the flow of current to the starter motor during the starting process.

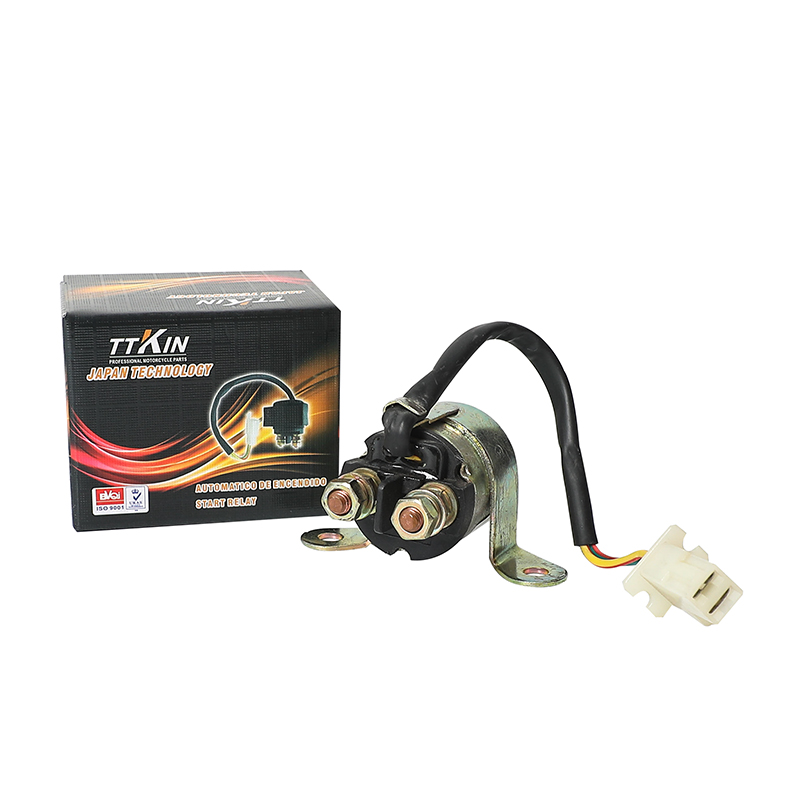

Relé de Arranque
2. What is the working principle of Starter Motor and Starter Relay? What role do they play in the motorcycle's electrical system?
Starter Motor Working Principle:
  1. When you press the start button, current flows to the starter motor.
  2. The electric motor begins to rotate, transmitting energy to the starter gear.
  3. The starter gear connects with the engine gear, starting the engine.
Starter Relay Working Principle:
  1. When you press the start button, current flows to the electromagnetic coil of the start relay.
  2. The coil activates, closing the contacts and establishing a path for the current.
  3. Current flows through the starter relay to the starter motor, initiating its operation.
Functions in the Electrical System:
  • Starting motor:Provides the power needed to start the motorcycle engine.
  • Start Relay:Controls the direction of current flow, making starting easier and relieving the load on the start button.
3. What is the relationship between the Starter Motor, the Starter Relay and the Regulator?(What is the Motorcycle Regulator?)
  1. Current and Stability Management:
    • The starter relay ensures adequate current flow to the starter motor during the starting process, maintaining electrical stability.
    • The regulator is responsible for maintaining voltage stability throughout the electrical system, avoiding fluctuations that could affect electronic devices.
  2. System Protection and Power Source Stability:
    • The starter motor, starter relay and regulator work together to ensure the correct operation of the electrical system.
    • The regulator not only protects electronic devices from voltage fluctuations, but also maintains the overall stability of the electrical system.
  3. Coordination of the Electrical System:
    • These three essential components—starter, starter relay, and regulator—work together to ensure efficient starting and stable performance of the motorcycle's electrical system.
These three fundamental elements form an integral part of the motorcycle's electrical system, providing crucial electrical support and ensuring its reliable and stable performance.
